Selec

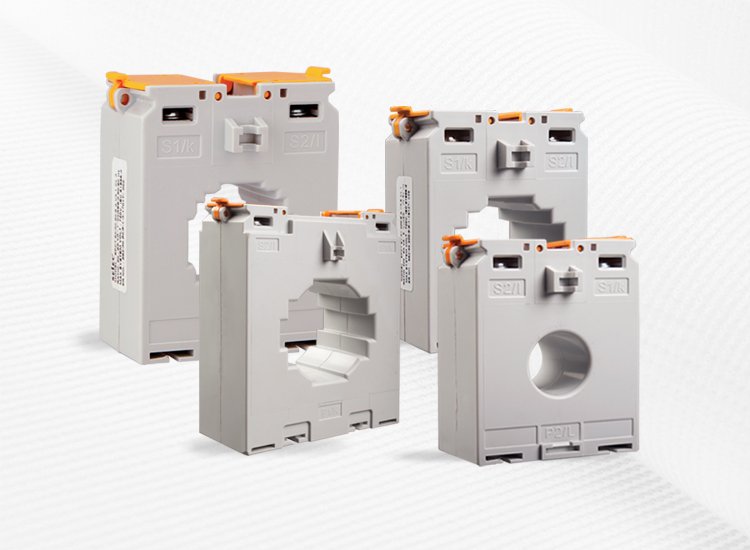

Busbar CT’s are available in wide range of bus bar sizes and current measuring range of 30A to 4000A. It comes with accuracy class of 0.5 to 5. It is CE, UL & ASTA Certified
Selec - Busbar CT
| Part Number | Bus Bar | Rating | Class | VA |
|---|---|---|---|---|
| SPCT-50/30-60/5A-VA1-CL5-CE | 30*10 | 60/5 | 1 | 5VA |
| SPCT-50/30-80/5A-VA1-CL1-CE | 30*10 | 80/5 | 1 | 5VA |
| SPCT-50/30-100/5A-VA1-CL1-CE | 30*10 | 100/5 | 1 | 5VA |
| SPCT-50/30-160/5A-VA1.5-CL1-CE | 30*10 | 160/5A-VA1 | 1 | 5VA |
| SPCT-50/30-200/5A-VA3-CL1-CE | 30*10 | 200/5 | 1 | 5VA |
| SPCT-50/30-250/5A-VA3-CL1-CE | 30*10 | 250/5 | 1 | 5VA |
| SPCT-50/30-400/5A-VA5-CL1-CE | 30*10 | 400/5 | 1 | 5VA |
| SPCT-62/40-400/5A-VA3.75-CL0.5-CE | 40*10 | 400/5 | 0.5 | 3.75VA |
| SPCT-62/40-630/5A-VA3.75-CL0.5-CE | 40*10 | 630/5 | 0.5 | 3.75VA |
| SPCT-100/60-800/5A-VA10-CL0.5-CE | 60*12 | 800/5 | 0.5 | 10VA |
| SPCT-100/60-1000/5A-VA15-CL0.5-CE | 60*12 | 1000/5 | 0.5 | 15VA |
| SPCT-100/60-1200/5A-VA15-CL0.5-CE | 60*12 | 1200/5 | 0.5 | 15VA |
| SPCT-140/100-1000/5A-VA15-CL0.5-CE | 100*30 | 1000/5 | 0.5 | 15VA |
| SPCT-140/100-1250/5A-VA15-CL0.5-CE | 100*30 | 1250/5 | 0.5 | 15VA |
| SPCT-140/100-1600/5A-VA15-CL0.5-CE | 100*30 | 1600/5 | 0.5 | 15VA |
| SPCT-140/100-2000/5A-VA15-CL0.5-CE | 100*30 | 2000/5 | 0.5 | 15VA |
| SPCT-140/100-2500/5A-VA15-CL0.5-CE | 100*30 | 2500/5 | 0.5 | 15VA |
| SPCT-140/100-3000/5A-VA15-CL0.5-CE | 100*30 | 3000/5 | 0.5 | 15VA |
| SPCT-140/100-4000/5A-VA15-CL0.5 | 100*30 | 4000/5 | 0.5 | 15VA |
Selec

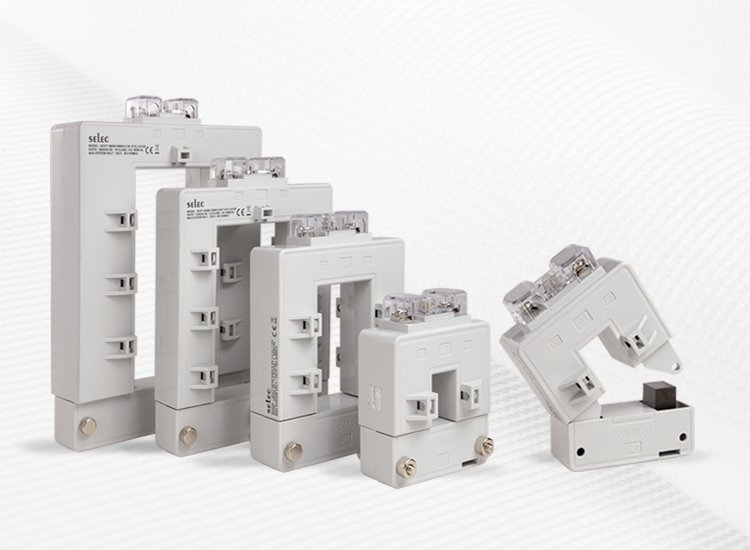

SCCT are available in wide range of bus bar sizes and current measuring range of 100A to 6000A. It comes with accuracy class of 0.5 to class 3. It comes with tamper proofing cover to ensure complete protection.
Selec - Split Core CT
| Part Number | Bus Bar | Rating | Class | VA |
|---|---|---|---|---|
| SCCT-120/80-2500/5A-VA10-CL0.5-CE | 80*120 | 2500/5 | 0.5 | 10VA |
| SCCT-120/80-1600/5A-VA10-CL0.5-CE | 80*120 | 1600/5 | 0.5 | 10VA |
| SCCT-80/50-800/5A-VA2.5-CL0.5-CE | 50*80 | 800/5 | 0.5 | 2.5VA |
| SCCT-80/50-600/5A-VA2.5-CL0.5-CE | 50*80 | 600/5 | 0.5 | 2.5VA |
METERS
High-precision Lovato Meters for accurate energy and power measurement.
Selec - Meters

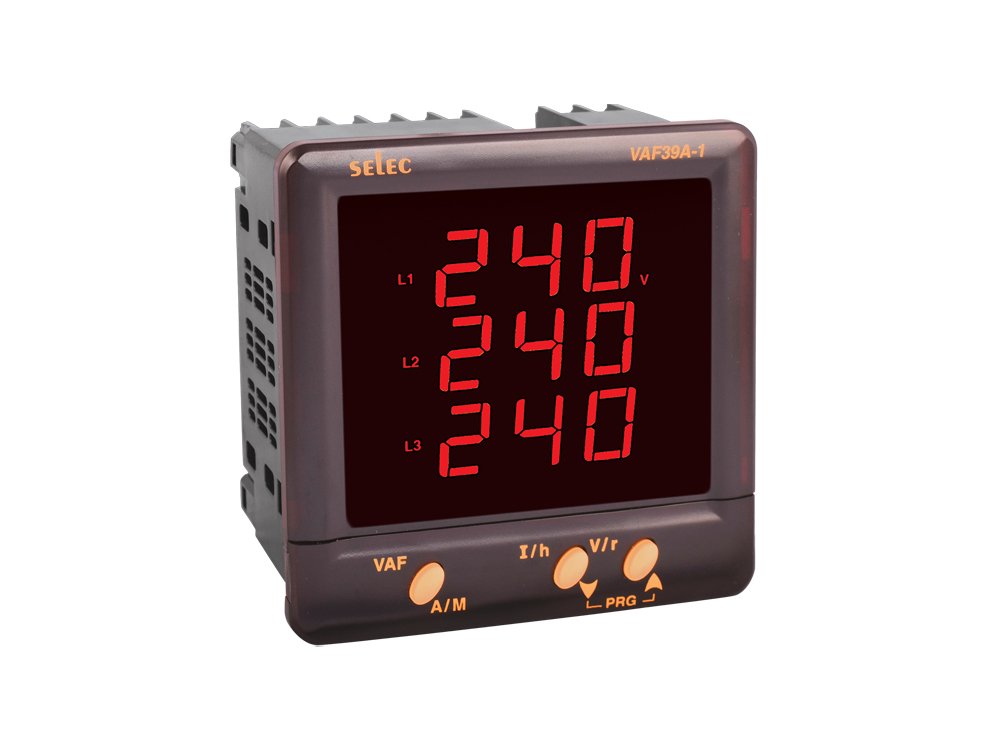

VAF39A-1-230V-CE/VAF39A
1 Phase & 3 Phase systems, 11 to 300V AC (L-N), 19 to 519V AC (L-L) measurement, accuracy of ±0.5% for voltage, ±1% for current, ±0.1Hz for frequency, ±0.5% for RPM, and ±1% for run hour.

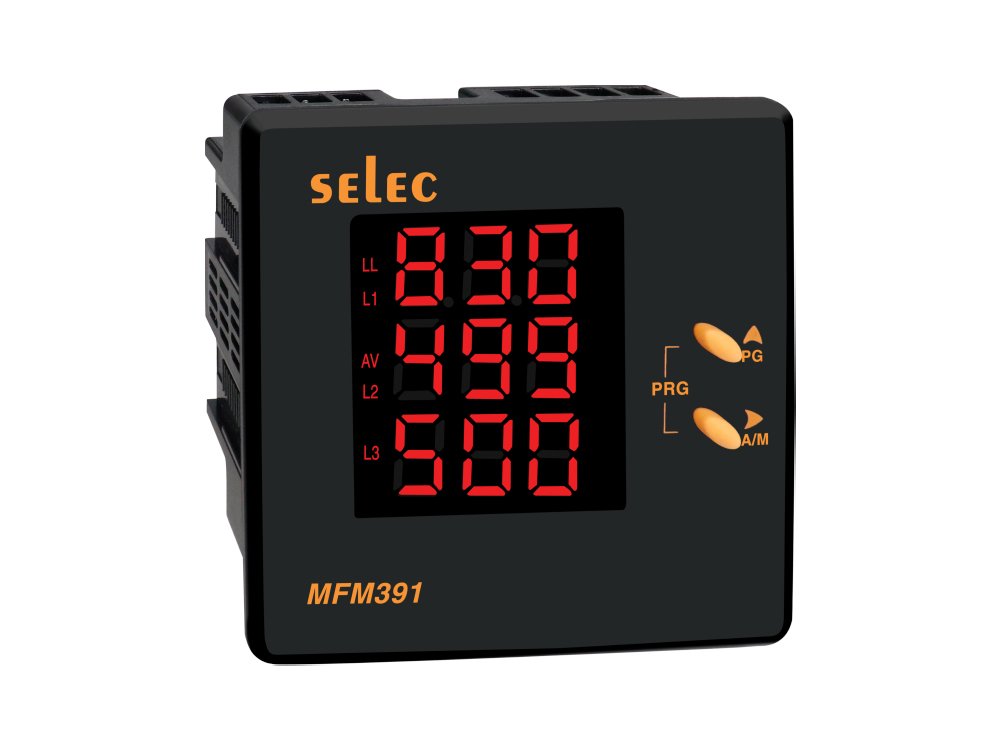

MFM391/VAF391
Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems. Accuracy of ±0.5% for voltage & current, 0.1% for frequency, 0.01% for PF, 1% for power, Class 1 for active, reactive & apparent energy.

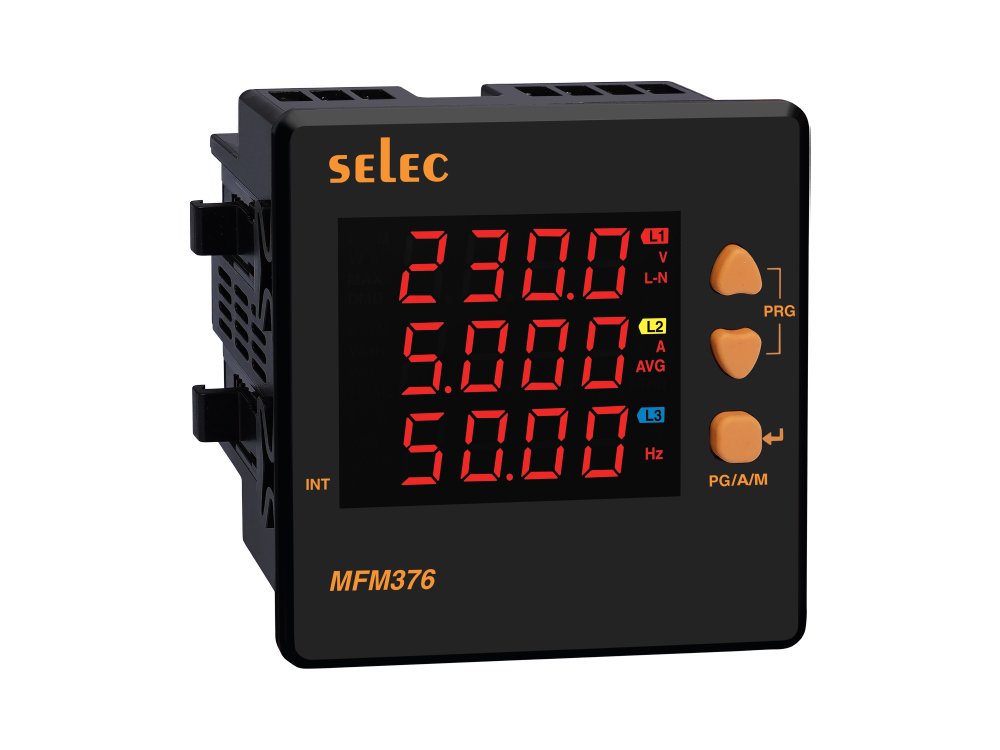

MFM376-C-CE
Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems. Accuracy of ±0.5% for voltage & current, ±0.1% for frequency, ±0.01% for PF, Class 1 for active, reactive & apparent energy. RS485 Communication MODBUS RTU.

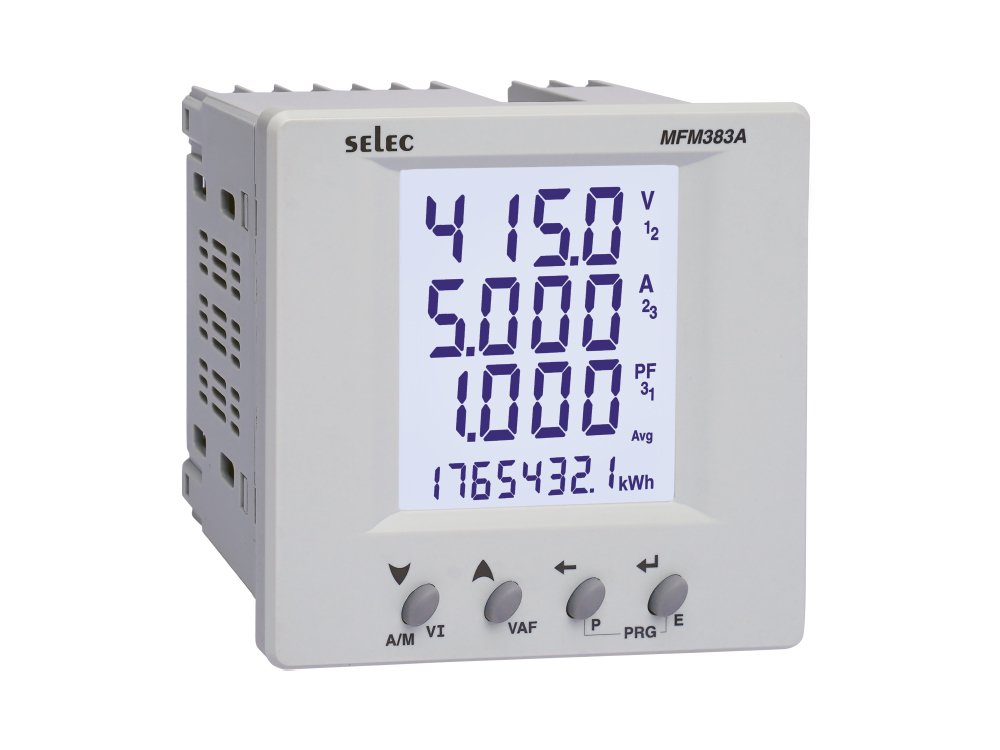

MFM383A-C-CE
Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems. Accuracy of ±0.5% for voltage & current, ±0.1% for frequency, ±0.01% for PF, Class 1 for active, reactive & apparent energy. CE RoHS certified.

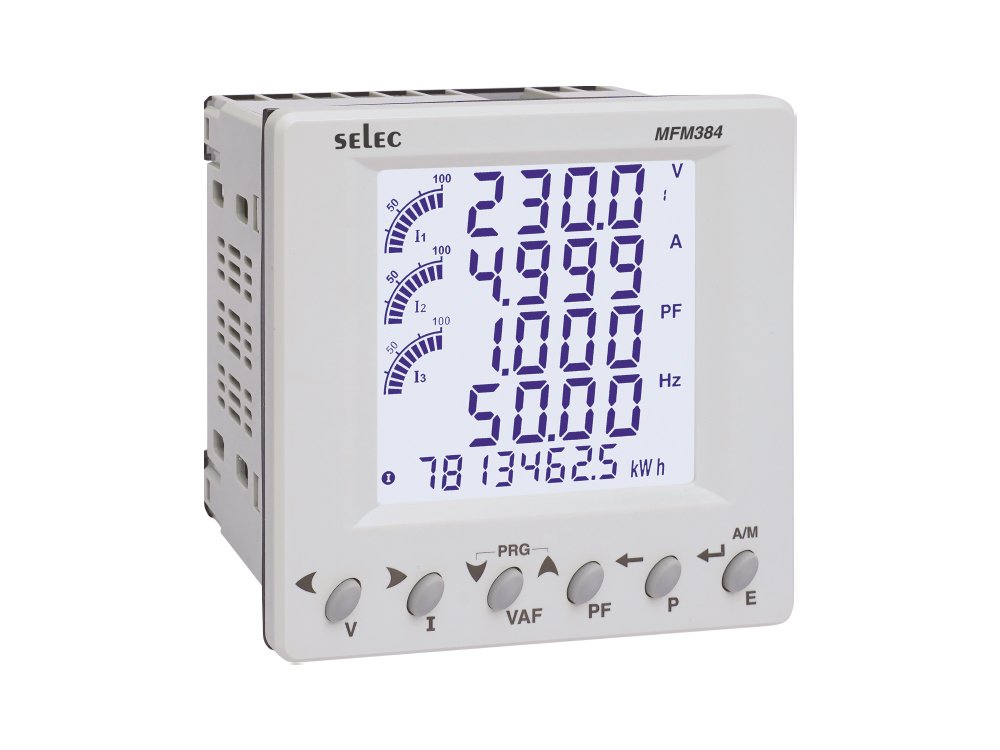

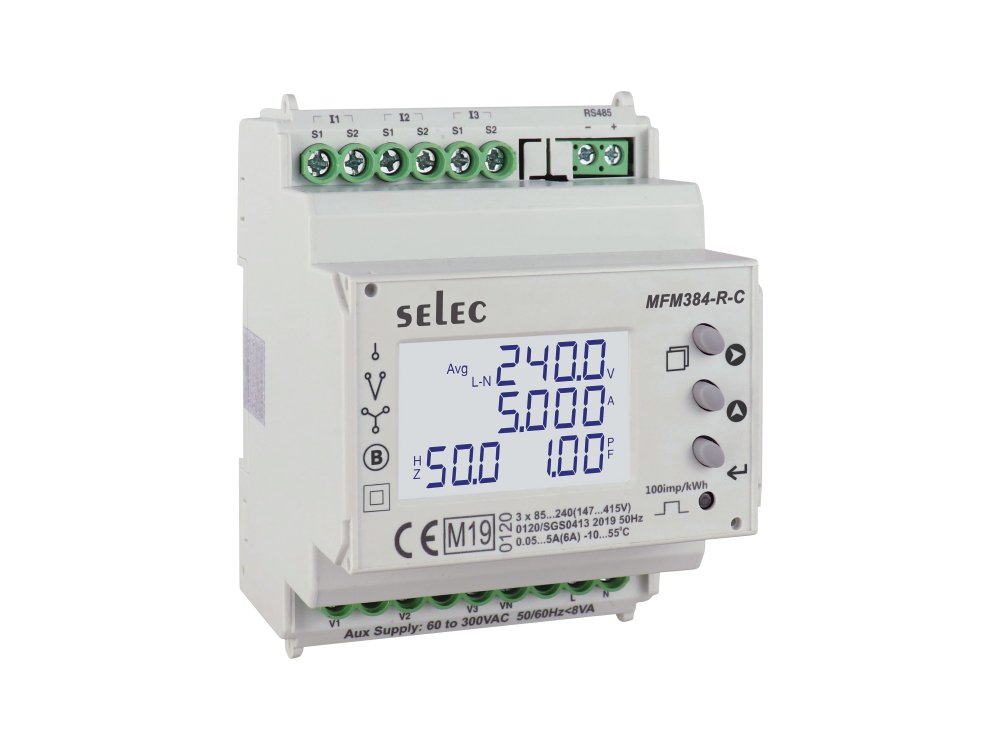

MFM384-C-CE
Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 3 wire, 3 phase 4 wire systems. Accuracy of ±0.5% for voltage & current, ±0.1% for frequency, ±0.01% for PF, Class 1 for active, reactive & apparent energy.

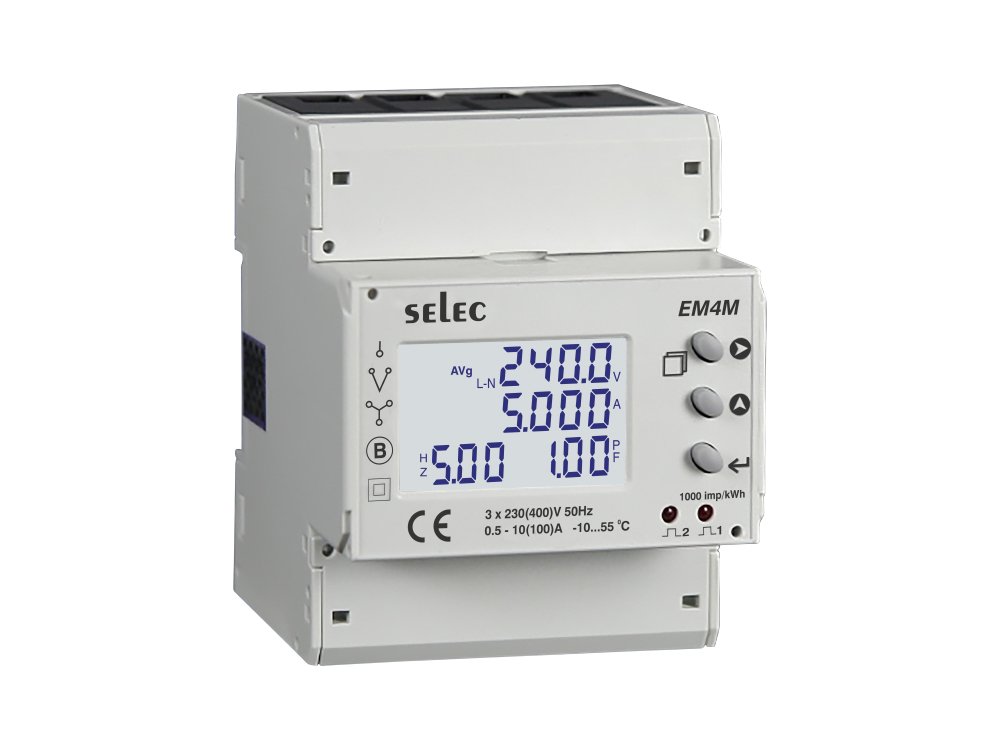

EM4M-3P-C-100A
Direct current measurement up to 100A, Dual-Input measurement. Compatible with 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems. RS485 Modbus communication. CE Certified.

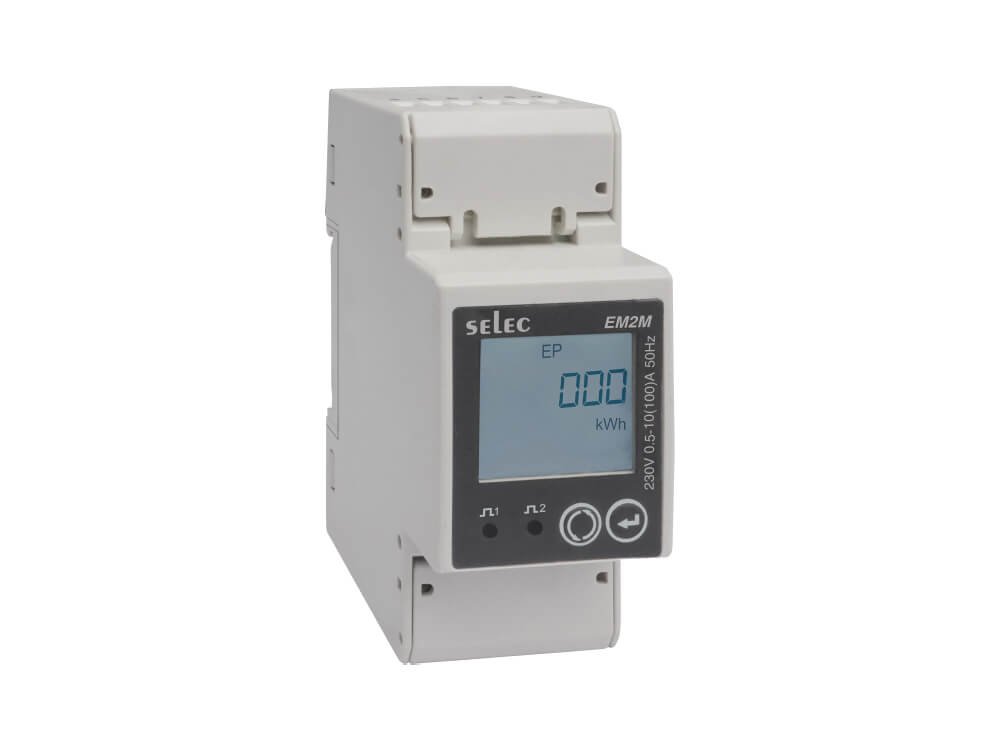

EM2M-1P-C-100A
Compatible with 1 phase 2 wire system, Self-Supplied. RS485 Modbus communication, Mbus variant available. CE, MID Certified.

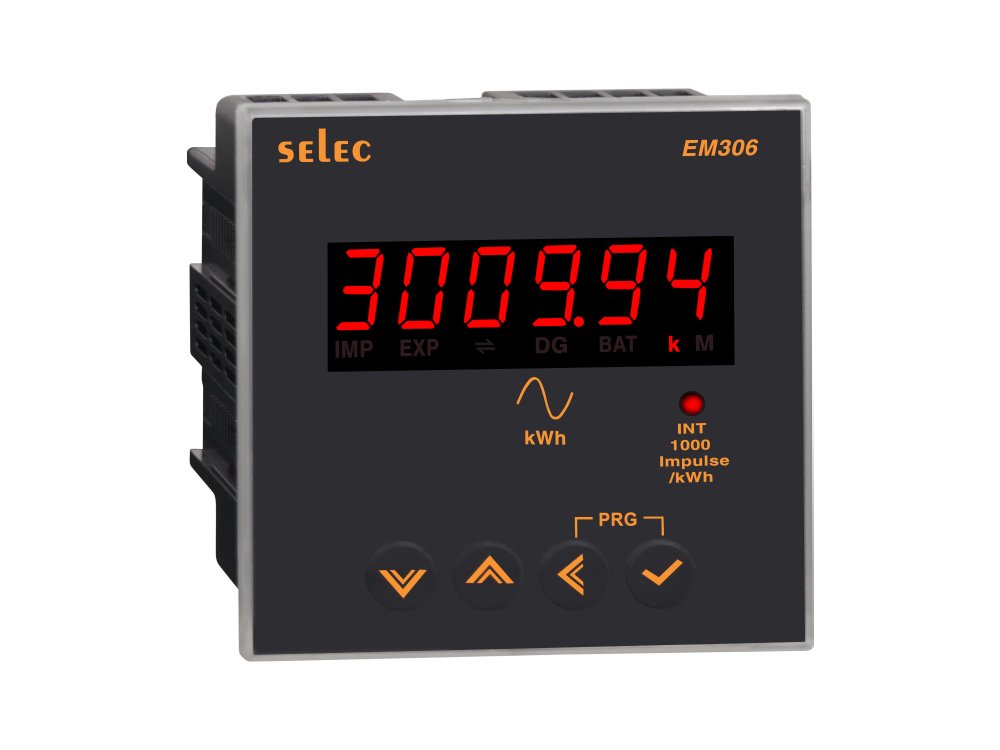

EM306
Compatible with 1 phase 2 wire, 2 phase 3 wire, 3 phase 4 wire systems. Accuracy of Class 1 for energy. LED Display with 1 row of 6 digits. RS485 and MODBUS RTU communication.

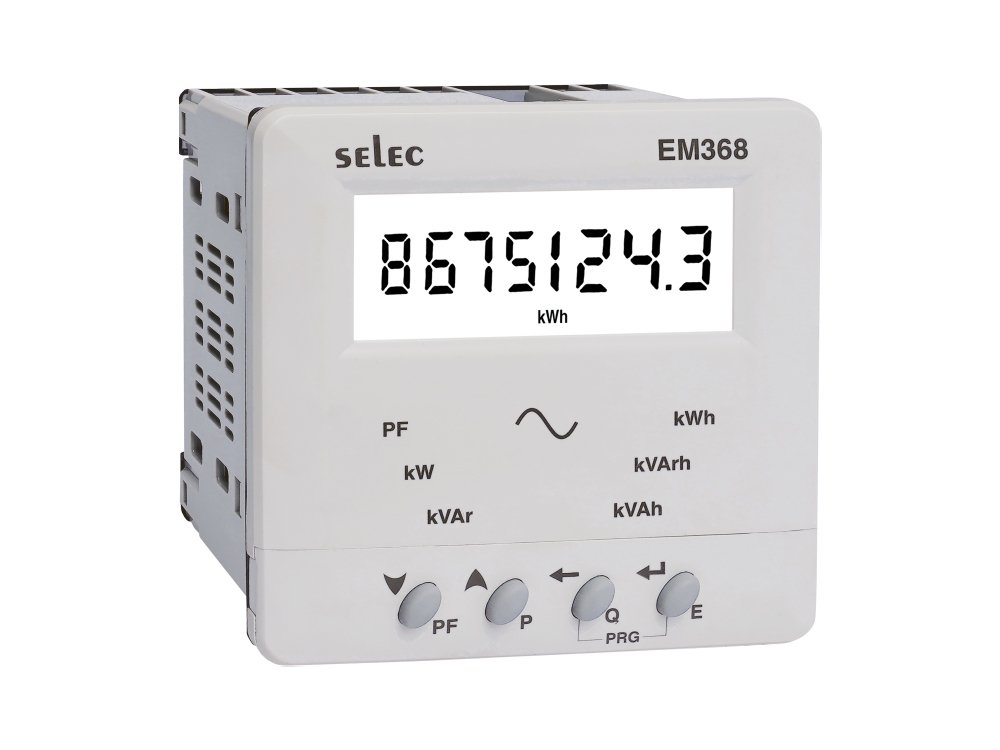

EM368-C-CU
LCD Display with 1 row of 8 digits. Class 1 for Active energy. Pulse output, RS485, and Modbus RTU communication.

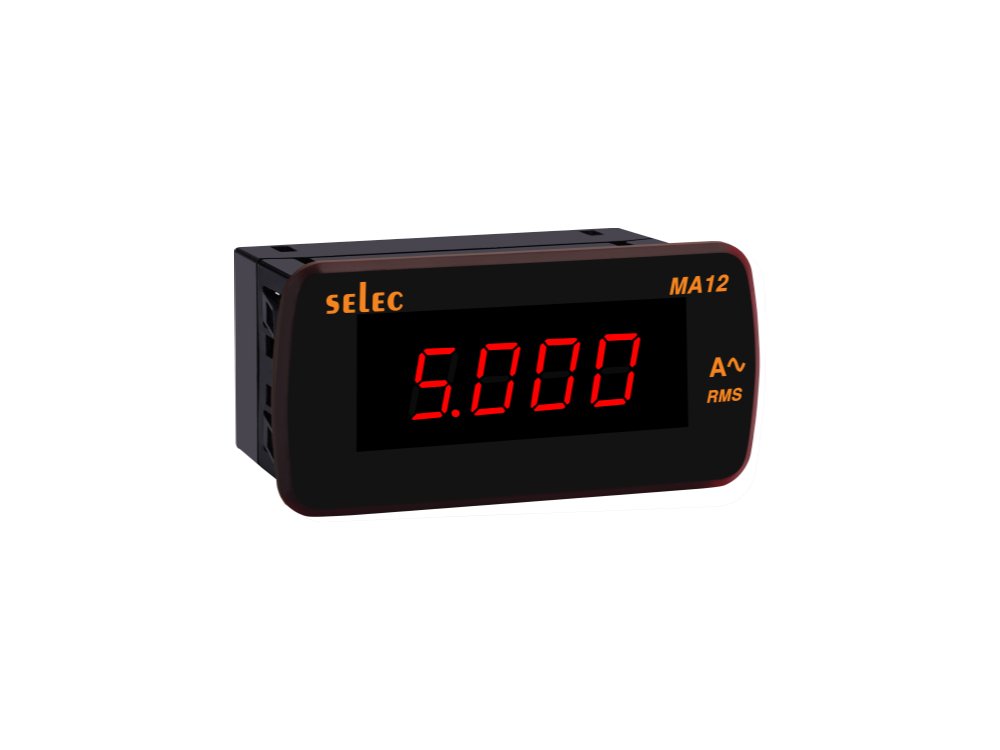

MA12
Control relays monitor and detect abnormal operating conditions (phases, current, voltage, frequency, speed, or temperature)

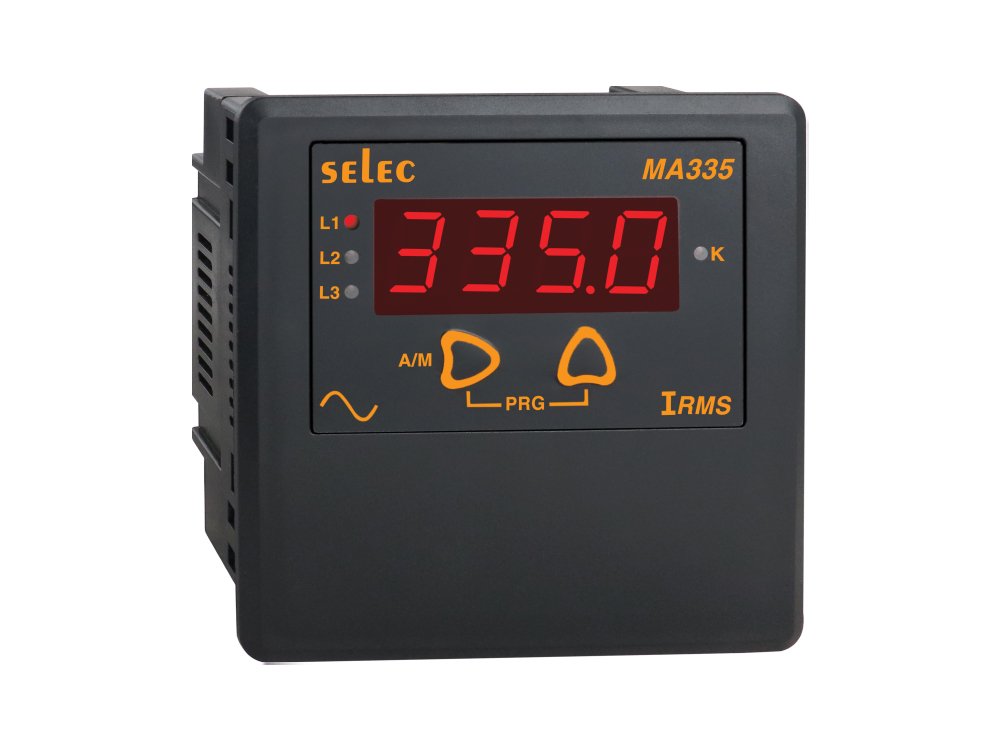

MA335-230V AC
3 Phase 4 Wire, 3 Phase 3 Wire & 1 Phase 2 Wire systems. Accuracy of ±0.5% of F.S. 4 digit 7 segment LED display.
MV334-230
1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems. Accuracy of ±0.5% of F.S. 4 digit 7 segment LED display.
MV368
1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems. Accuracy of ±0.5% of F.S. 4 digit 7 segment LED display.
Selec
ELR and CBCT for detecting earth leakage and current monitoring in industrial applications.
Selec - ELR and CBCT

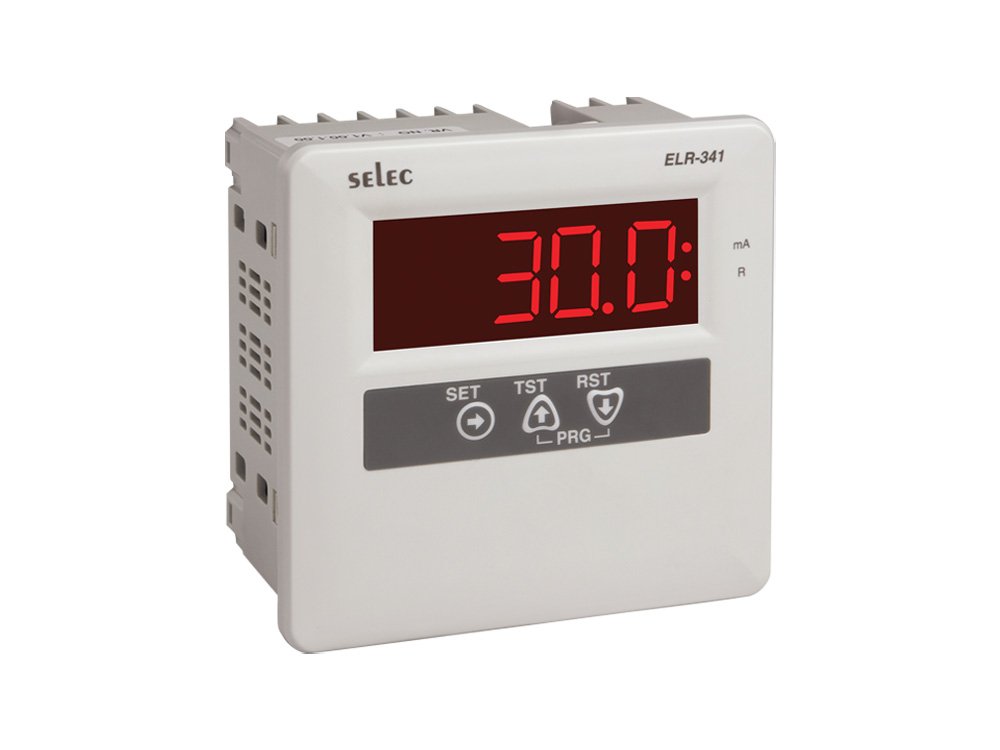

ELR341-1
Detects leakage current for 1Ø & 3Ø systems, with a range of 30mA to 30A. Features 1 C / O (SPDT) relay output and DIN-rail mounting.

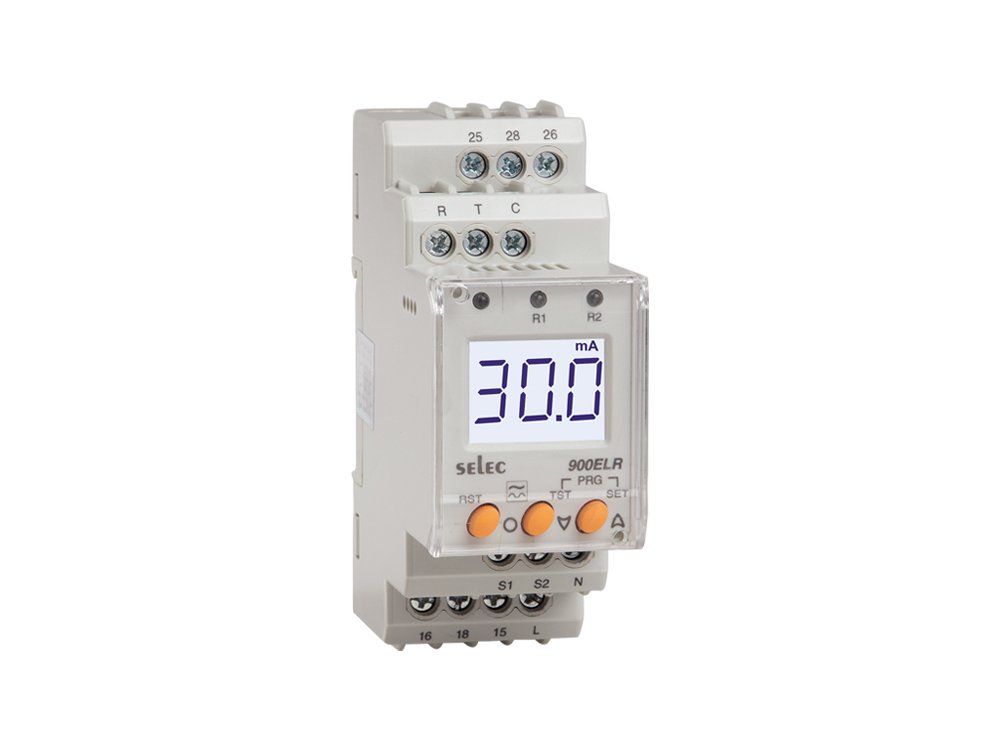

900ELR-2-230V-CE
Detects leakage current for 1Ø & 3Ø systems, with dual SPDT relay outputs and DIN rail mounting.

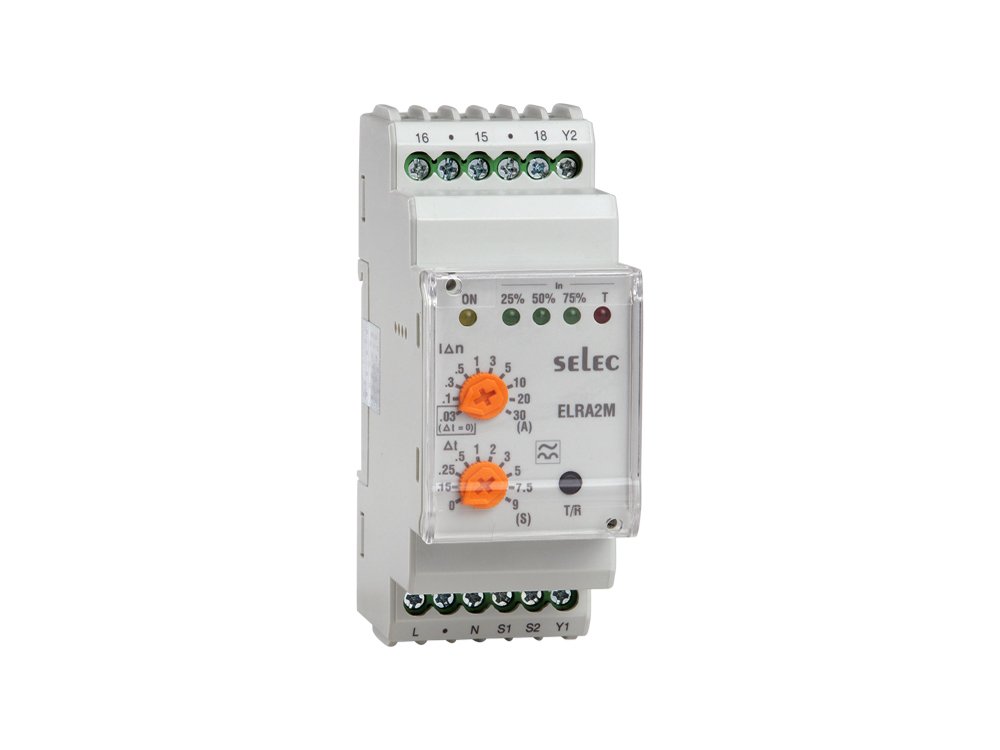

ELRA2M2-2-230V-CE
Monitors leakage current for 1Ø & 3Ø systems with trip relay, LED indication, and DIN-rail mounting.

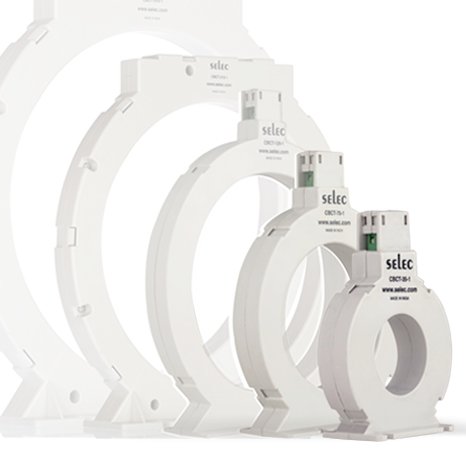

CBCT-35-1-CE
Highly sensitive CBCT with leakage current detection from 5mA. Panel mount with inner diameter of 35mm.
CBCT-70-1-CE
Highly sensitive CBCT with leakage current detection from 5mA. Panel mount with inner diameter of 70mm.
CBCT-120-1-CE
Highly sensitive CBCT with leakage current detection from 5mA. Panel mount with inner diameter of 120mm.
CBCT-210-1-CE
Highly sensitive CBCT with leakage current detection from 5mA. Panel mount with inner diameter of 210mm.
CBCT-310-1-CE
Highly sensitive CBCT with leakage current detection from 5mA. Panel mount with inner diameter of 310mm.
Selec
Protection relays for monitoring voltage, phase sequence, asymmetry, phase failure, and water level in industrial applications.
Selec - Protection Relays

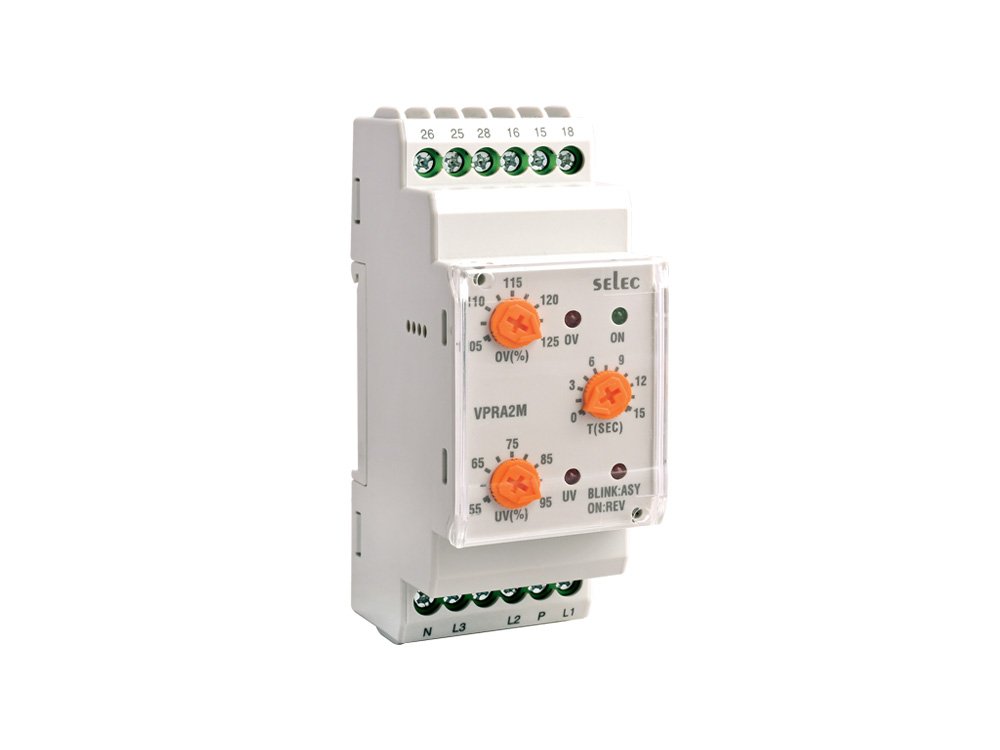

VPRA2M-CE
Single phase and Three phase voltage Protection relay. Monitors Over / Under Voltage, Phase asymmetry, Phase failure and Phase sequence. Supply Voltage: 127 to 288V AC (L-N). 2 C/O DPDT output relay. CE and RoHS certified.

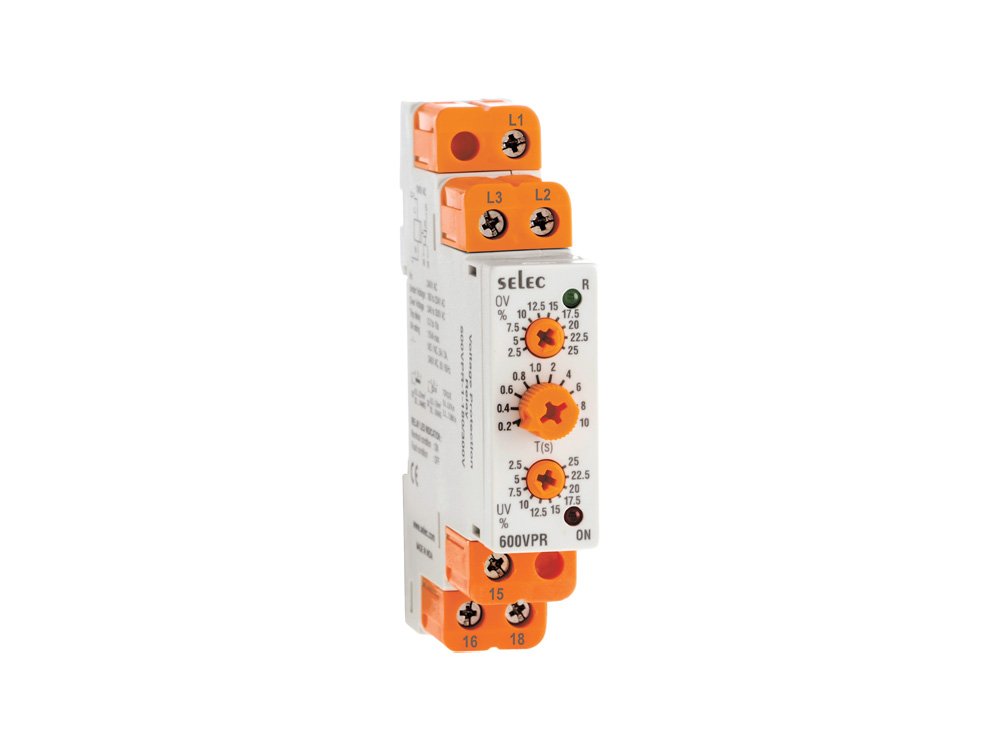

600VPR-1-130/320V-CE
Three phase voltage Protection relay. Monitors Over / Under Voltage, Phase failure, Phase asymmetry and Phase sequence. Accuracy ± 0.5% of F.S Voltage. Supply voltage: 170V to 290V AC (L-L). 1 C/O SPDT output relay. CE, RoHS and UL certified.
600VPR-310/520V-CE
Three phase voltage Protection relay. Monitors Over / Under Voltage, Phase Failure, Phase asymmetry and Phase sequence. Accuracy ± 0.5% of F.S Voltage. Supply voltage: 310V to 520V AC (L-L). 1 C/O SPDT output relay. CE and RoHS certified.

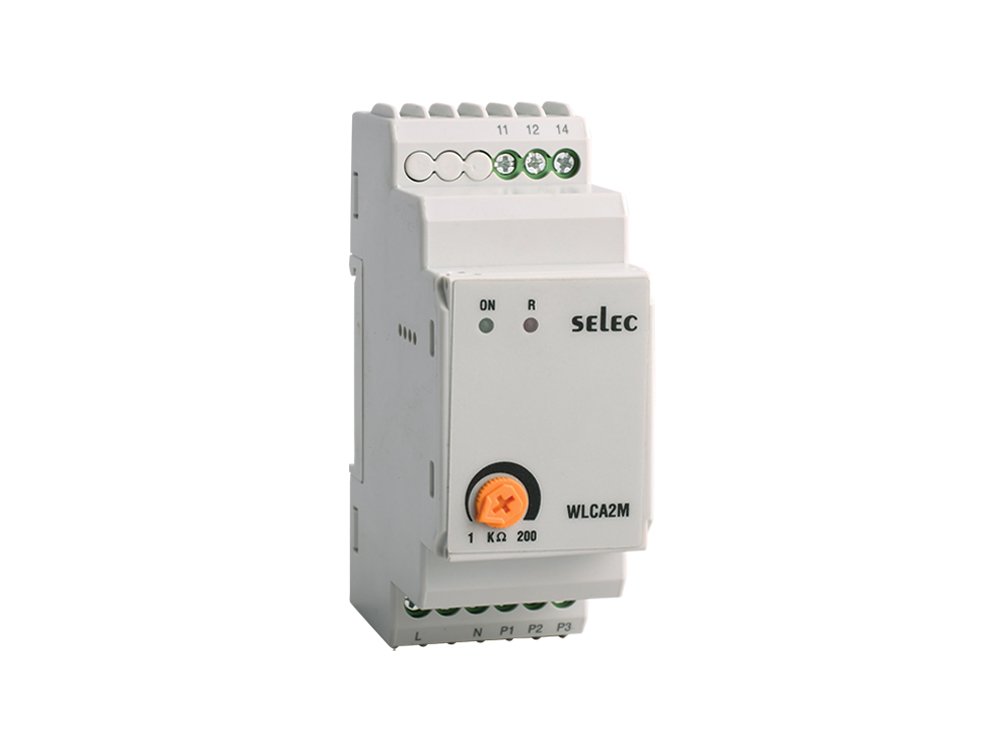

WLCA2M1-CE-RoHS
1 tank water level controller. Used for drain and fill control for single tank operation. Supply voltage of 85 to 270V AC/DC. DIN-rail mounting. CE certified.
WLC SENSOR
Sensor probe for level controller, designed to detect water level with high accuracy for single tank operations. CE certified.
Selec

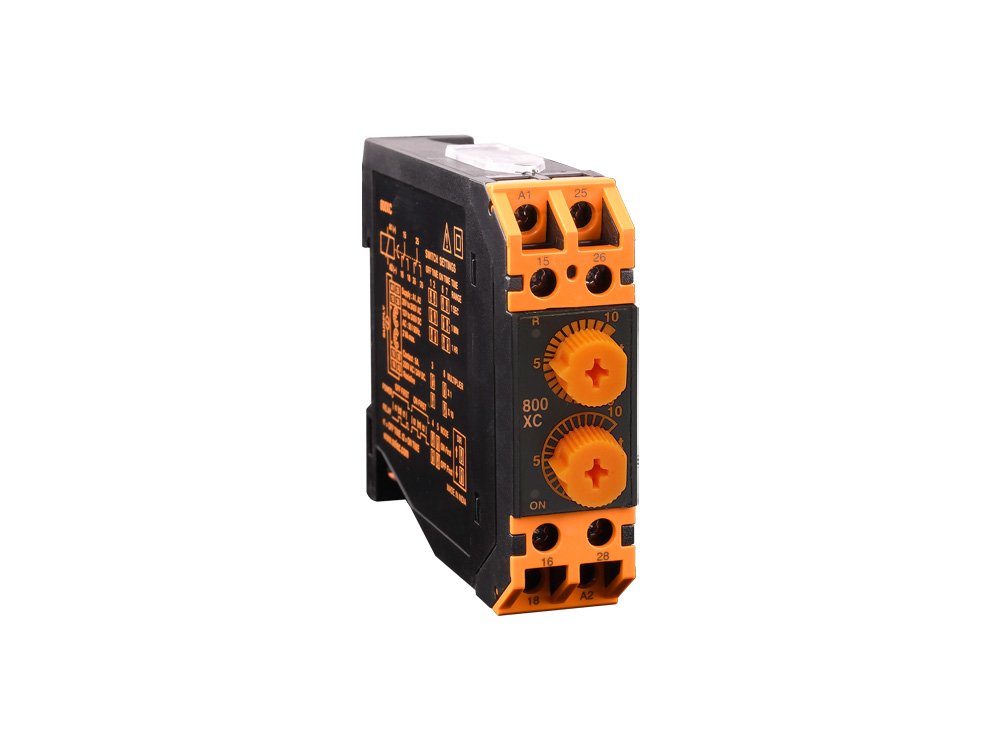

Timers for industrial applications, including on-delay, star-delta, cyclic timers, and more, designed to optimize operational efficiency
Selec - Timers

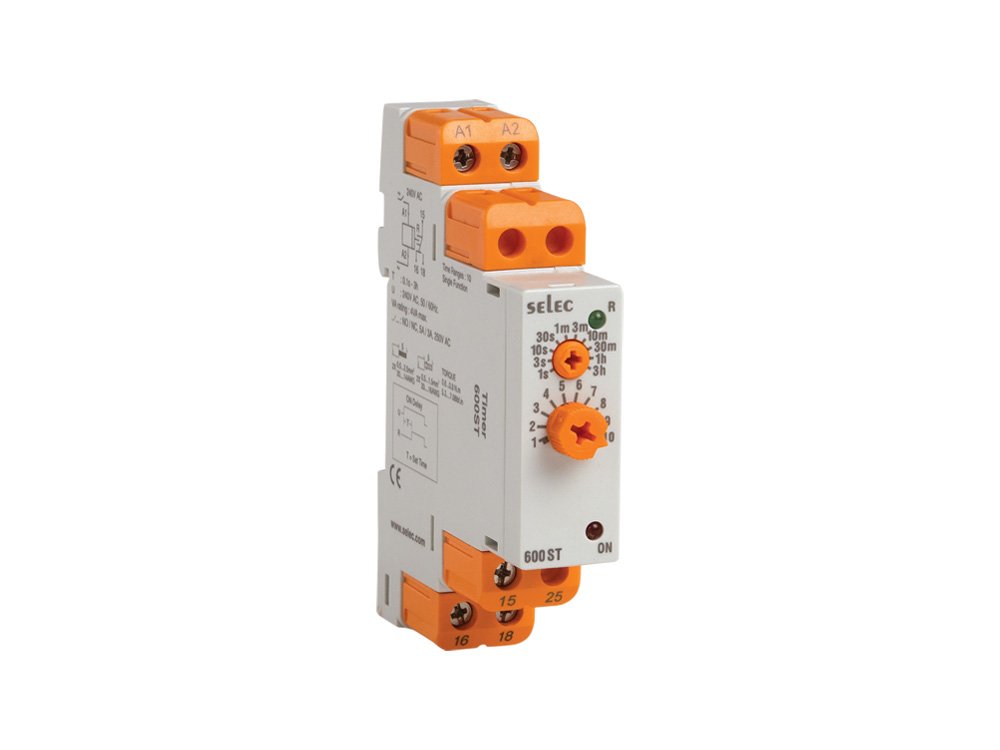

600ST-CU
On delay timer with 10 time ranges. Features LED indications for Power ON and Relay ON, with front knobs for time range and time scale. Slim, space-saving design.

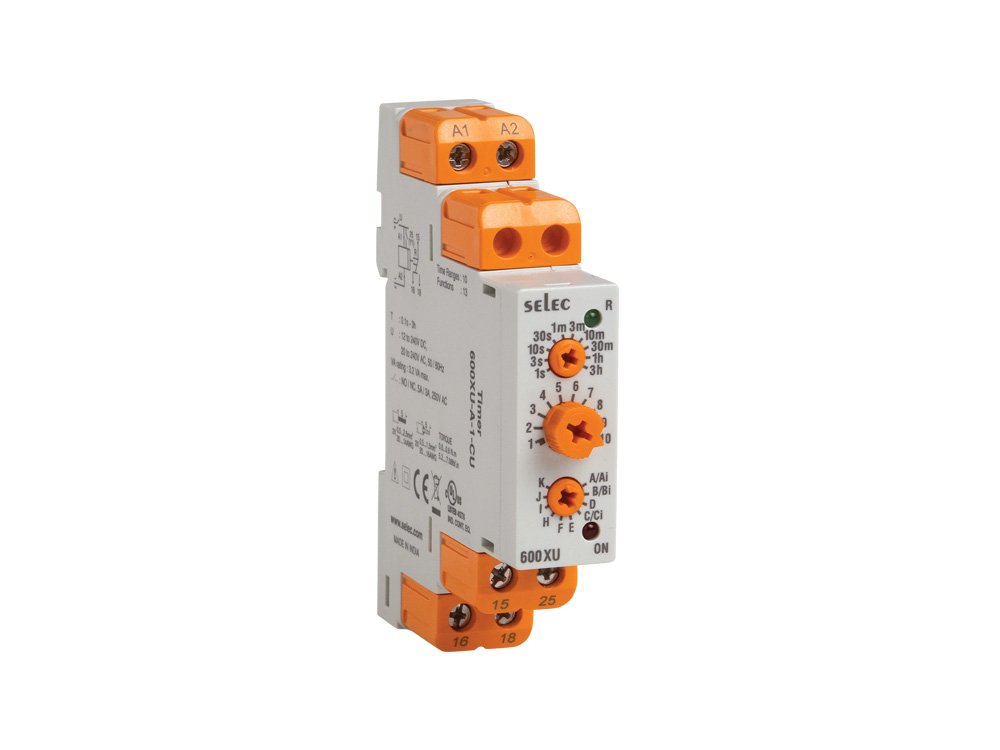

600XU-A-1-CU
Multi-function timer with 13 functions and 10 time ranges. Includes LED indications for Relay ON and Power ON, with front knobs for time range, time scale, and mode settings.
600ST-CU-240V
Compact on-delay timer with adjustable time range from 0.1 to 3 hours. Suitable for industrial and automation systems, with reliable relay contacts.
600XU-B-1-CU
A versatile cyclic timer that provides multiple timing modes including ON/OFF cycles, interval delays, and more. Designed for efficiency and reliability.
600ZT-AC
Star-Delta timer designed for motor control applications, offering automatic switching between star and delta connections to reduce starting currents.
600XT-CU
Interval timer with adjustable delay periods ranging from 0.1 seconds to 3 hours. Suitable for industrial automation and equipment control systems.
600YS-B
Multifunctional timer with various operating modes including ON Delay, Interval, and Cyclic timers. Ideal for complex industrial control applications.
600ZP-CU
Pulse output timer, ideal for applications requiring periodic pulses. Features adjustable delay times and reliable relay contacts.
600YC-A
Single shot timer for precise and time-sensitive applications. Provides a fixed duration of output based on adjustable delay times.
Selec
Lovato Power Supply solutions designed for high-efficiency, reliable operation across various industrial applications.
Selec - Power Supply

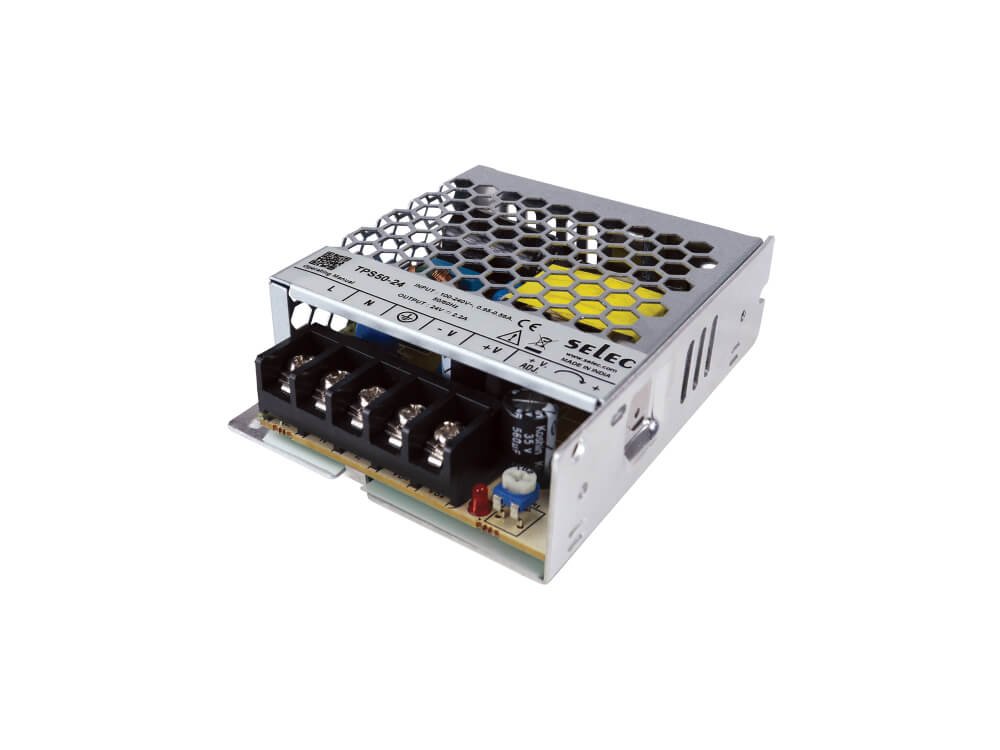

TPS50-24
Supports 90 – 264 VAC / 127 – 373 VDC. Efficiencies up to 86%. Operating temperature: 40°C to +70°C. Compact size and 1U low profile. Protection against short circuit, overload & overvoltage. Cooling by free air convection.

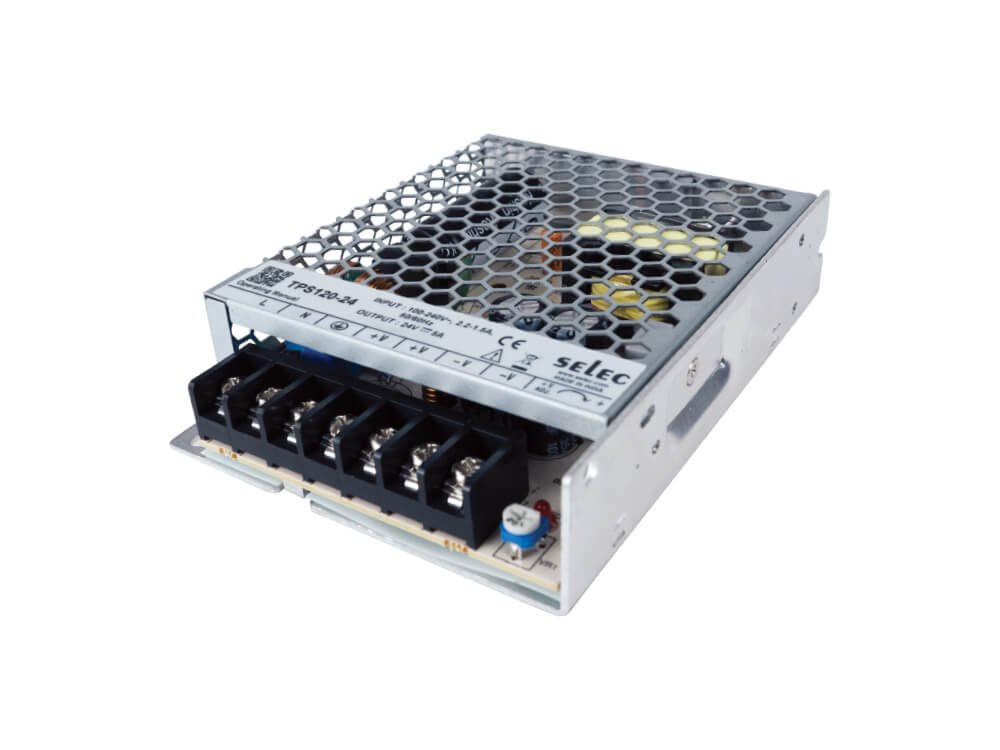

TPS120-24
Supports 90 – 264 VAC / 127 – 373 VDC. Efficiencies up to 89%. Operating temperature: 40°C to +70°C. Compact size and 1U low profile. Protection against short circuit, overload & overvoltage. Cooling by free air convection.
RPS40-12-CE
Supports 90 – 264 VAC / 127 – 370 VDC. Efficiencies up to 85%. Protection against short circuit, overload. Cooling by free air convection. Full power between -25°C to +50°C.
RPS60-12
Supports 90 – 264 VAC / 127 – 370 VDC. Efficiencies up to 87%. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848).

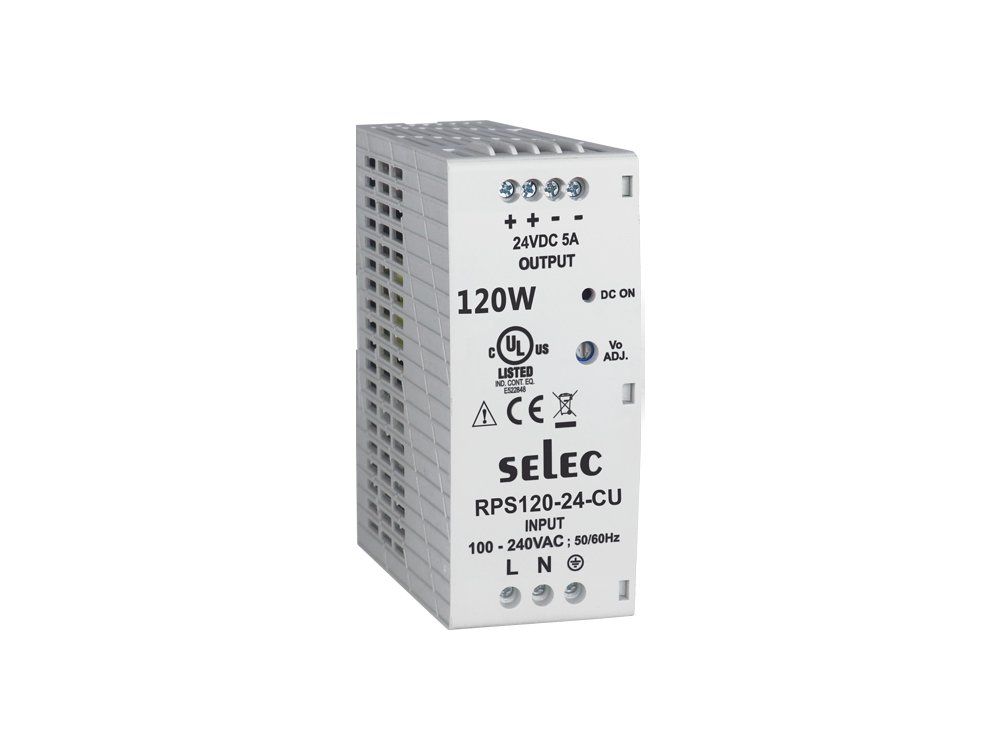

RPS120-24-CU
Supports 90 – 264 VAC / 127 – 370 VDC. Efficiencies up to 89%. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848).

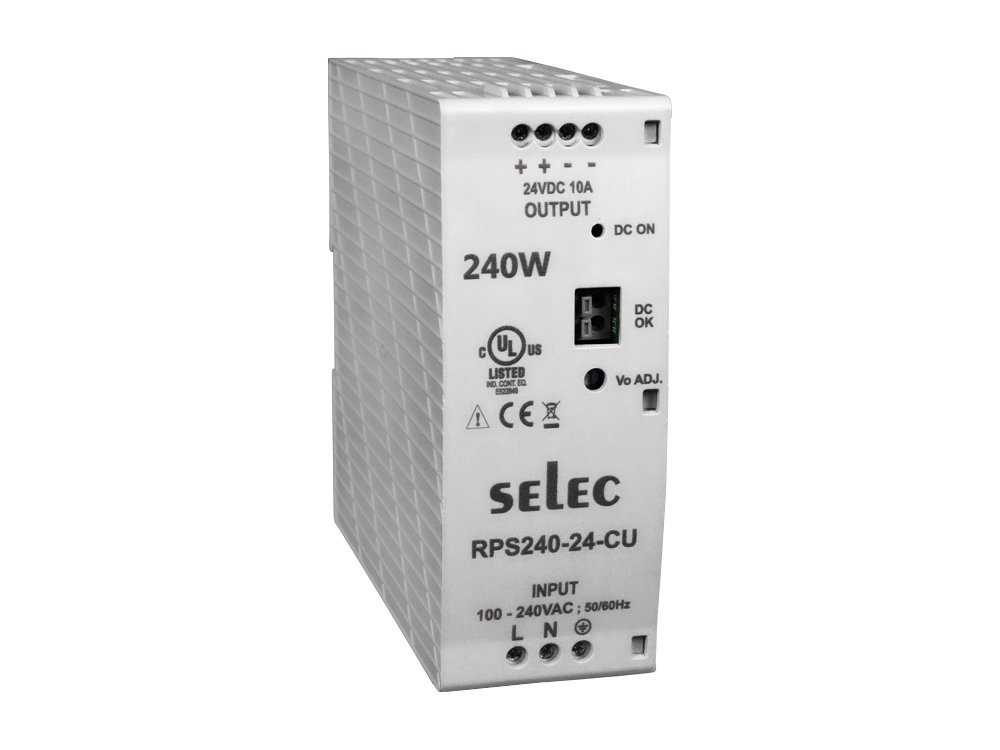

RPS240-24-CU
Supports 90 – 264 VAC / 127 – 370 VDC. Power factor > 0.95 @ full load over entire input range. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848). Efficiencies up to 93%. DC OK Relay contact.

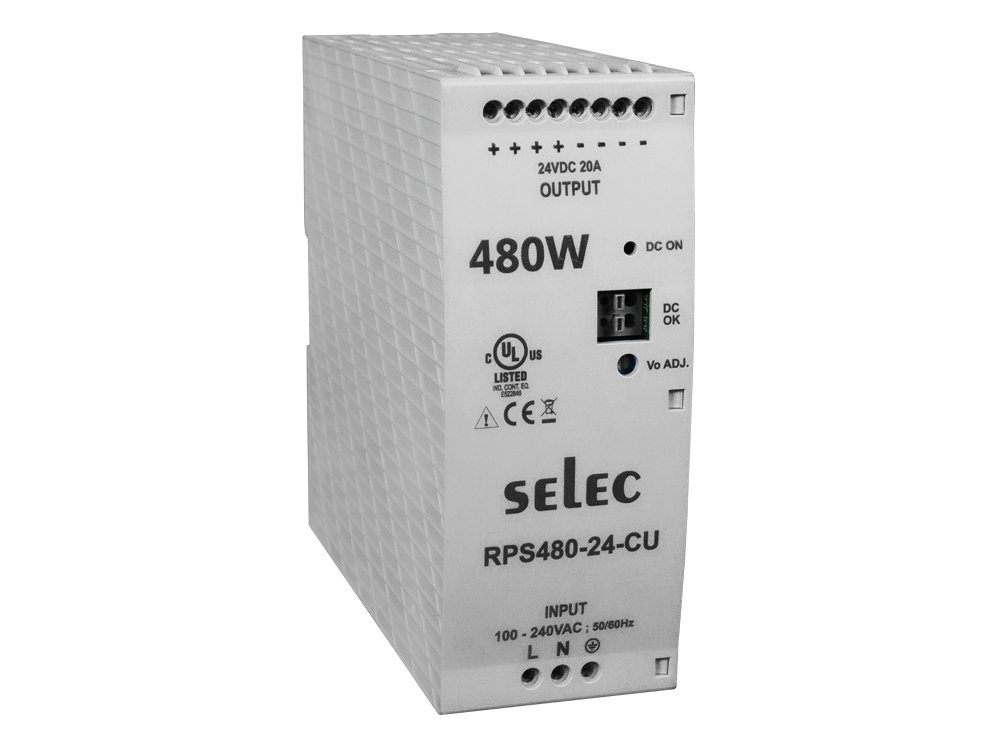

RPS480-24-CU
Supports 90 – 264 VAC / 127 – 370 VDC. Power factor > 0.95 @ full load over entire input range. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848). Efficiencies up to 93%. DC OK Relay contact.
PFC CONTROLLER
Selec PFC Controllers provide advanced power factor correction for efficient energy management in both single and three-phase systems.
Selec - PFC Controller

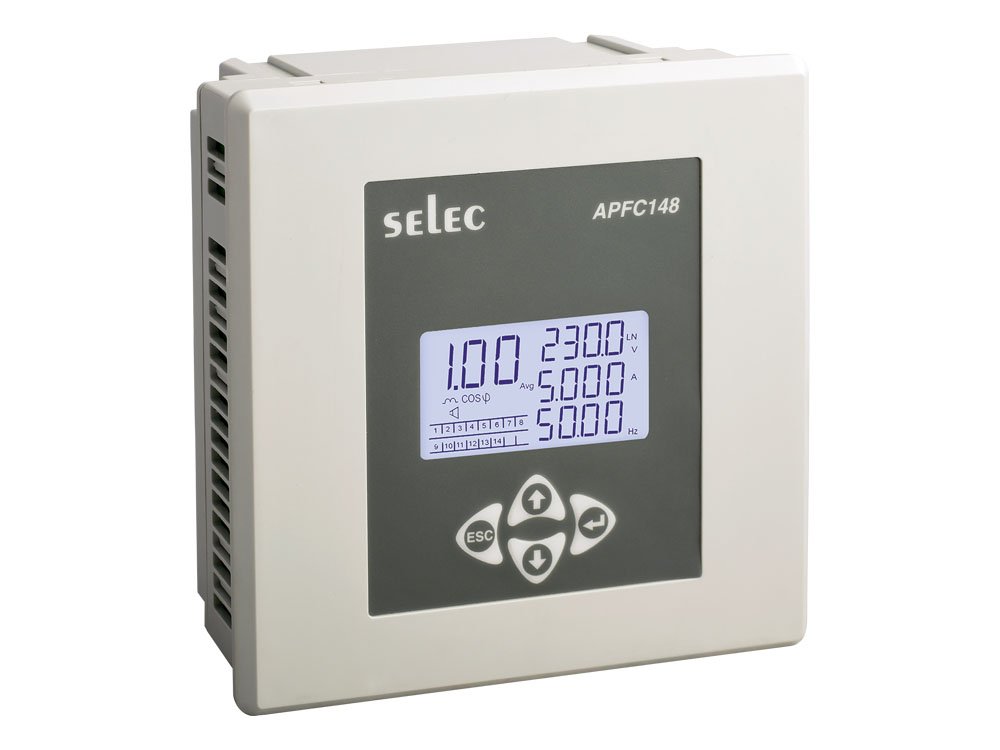

APFC148-312-90/550V-CE
Works for single and three-phase systems. 12-stage programmable relay. Accuracy of ±0.01 for power factor, ±0.5% for voltage and current. LCD display with dual-color backlight. Programmable PF: -0.8 to +0.8. Settable parameters: number of relays, step time, discharge time. NTC sensor to detect temperature of the panel and fan output to cool the panel. Alarm indications for Overcompensation, Undercompensation, CT polarity error, Over-temperature error, No voltage error. Auto and manual modes. Wide auxiliary supply: 90 to 550V. RS485 MODBUS RTU protocol.

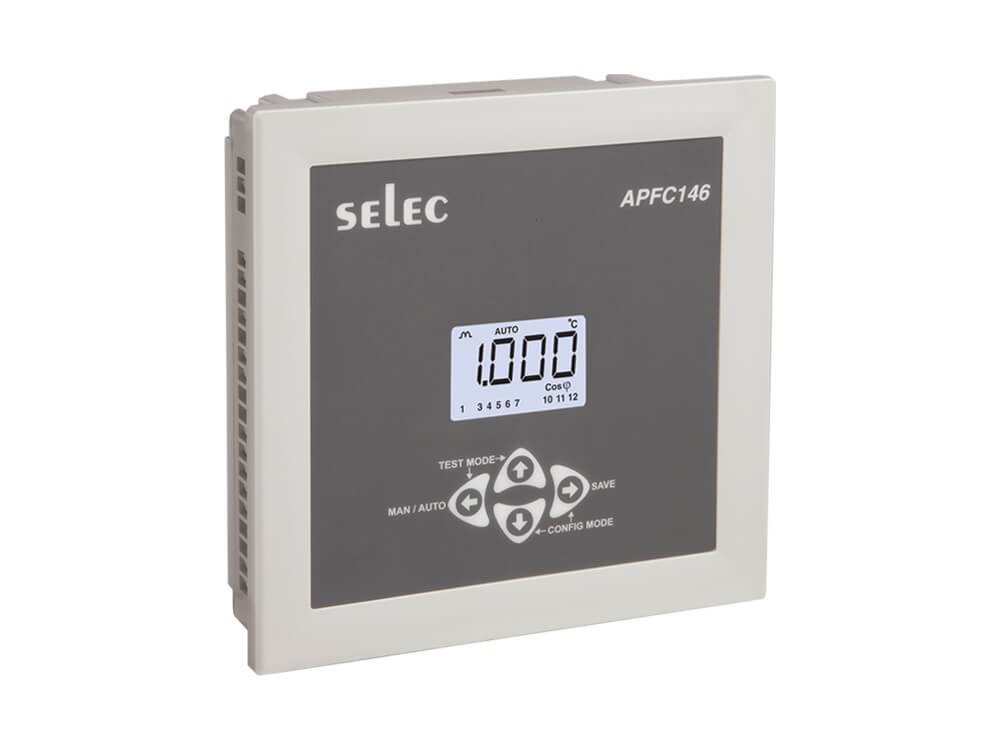

APFC146-112-90/550V-CE
Works for single and three-phase systems. Hassle-free installation, zero programming. 12-stage programmable relay. Accuracy of ±0.01 for power factor. LCD display with backlight. Programmable parameters: number of relays, step time, discharge time. Advanced features: alarm output, fan output. Auto CT reverse correction. Four-quadrant operation. Auto and manual modes. Wide auxiliary supply from 90 to 550V AC/DC. CE Certified.
